7 Matrices: Starting with Result

In the previous chapter, we referred to a string-comparison algorithm for DNA sequences. The details of the algorithm weren't important, but we need to consider them now. The algorithm happens to be fairly typical of a broad class of important numerical problems: it requires the computation of a matrix in such a way that each matrix element depends either on the input data or on other, already-computed elements of the matrix. (Not all DNA comparison algorithms work this way; but many algorithms in many domains do.) We'll use this algorithm as the basis for our discussion of problems with natural result-parallel solutions.

In practical terms, we noted that the DNA database problem had two different kinds of solution: we could perform many sequential comparisons simultaneously, or we could parallelize each individual comparison. In this chapter we investigate the second approach. We then discuss, briefly, a third approach that incorporates elements from both the others. As in the previous chapter, the real topic (of course) isn't DNA sequence comparison; it's one significant type of parallel programming problem, its immediate natural solution, and the orderly transition from the natural solution to an efficient one—in other words, from the right starting place to a good stopping point.

7.1 Big issues

Main themes:

Load balance is, again, crucial to good performance. The need for good load balance motivates our transformation from a result- to an agenda-parallel strategy.

Granularity control is the other crucial issue. Here, we use the size of a matrix sub-block (see below) as a granularity knob.

Special considerations:

Matrix sub-blocking is a powerful technique for building efficient matrix computations.

Logical inter-dependencies among sub-computations need to be understood and taken into account in building efficient programs. Here, we focus on an application with "wavefront" type dependencies.

7.2 Problem: the wavefront computation of a matrix

Given a function h(x,y), we need to compute a matrix H such that the value in the ith row, jth column of H—that is, the value of H[i,j] (in standard programming language notation) or H_i,j (in mathematical notation)—is the function h applied to i and j, in other words h(i,j).

The value of h(i,j) depends on three other values: the values of h(i-1, j), of h(i, j-1) and of h(i-1, j-1). To start off with, we're given the value of h(0, j) for all values of j, and of h(i, 0) for all values of i. These two sets of values are simply the two strings that we want to compare. In other words, we can understand the computation as follows: draw a two-dimensional matrix. Write one of the two comparands across the top and write the other down the left side. Now fill in the matrix; to fill in each element, you need to check the element on top, the element to the left, and the element on top and to the left.

7.3 The result-parallel approach

We noted in chapter two that result parallelism is a good starting point for any problem whose goal is to produce a series of values with predictable organization and inter-dependencies. What we've described is exactly such a problem.

Our computation fills in the entries of an m × n matrix (where m is, arbitrarily, the length of the shorter sequence and n is the length of the longer). Using result parallelism, we create a live data structure containing m × n processes, one for each element of the matrix. To do so we will execute a series of eval statements; to create the i, jth element of the live data structure, we execute a statement like

eval("H", i, j, h(i,j));

Here, h() is the function referred to above, charged with computing the i, jth entry on the basis of entries in the previous counter-diagonal of the matrix. Each process waits for its input values by blocking on rd statements. In general, the process that's computing entry (i,j) of the matrix will start out by executing

rd("H", i-1, j, ?val1);
rd("H", i, j-1, ?val2);
rd("H", i-1, j-1, ?val3);

It now performs an appropriate computation using values val1, val2 and val3 and completes, turning into the data tuple

("H", i, j, the i,jth value of the matrix).

It's typical of the result paradigm that a simple outline like this is very close to the actual code. We need only add one detail. The matrix described above is the core of the computation, but for this problem the answer really isn't the matrix—it's the maximum value in the matrix. So we need to adjust slightly the concept of a matrix element and how to compute one. An element will now have a value field and a max field. After we have computed an element's value, we compute its max field. To do so, we simply take the maximum of (1) the max fields of each input element and (2) the newly-computed value of this element. It should be clear that the max field of the lower-right entry of the matrix will hold the maximum of all values in the matrix.

The result parallel code appears in figure 7.1 and 7.2. An entry's value actually consists of a triple (d, p, q), with d measuring similarity proper; these plus a max slot constitute the fields of each matrix entry. As discussed above, the answer (i.e. , the maximum d value in the matrix) will be propagated to the max field of the lower-right entry. It is this entry that is ined at the end of real_main.

7.4 A result => agenda transformation

Our result parallel solution is simple and elegant, but its granularity is too fine to allow efficient execution on most current-generation asynchronous multiprocessors. For starters, we are using three input values to feed one very small computation. There is another cause of inefficiency as well, stemming from the data dependencies.

Consider the comparison of two 4-base sequences—the computation of a 4 × 4 matrix. At the starting point, only the upper-left matrix element can be computed. Once this is done, the elements to its right and beneath it (that is, the elements along the next counter-diagonal) can be computed. In general, the enabled computations sweep down in a wavefront from the upper-left element to the lower-right.

Suppose we look at the computation in terms of a series of discrete time steps. During every step, everything that can be computed is computed. We see that one element can be computed during the first time step, two during the second, three during the third, and so on up through the length of the longest diagonal. Thus, it's not until time step K that we will have enough enabled tasks to keep K processors busy. The same phenomenon occurs as the computation winds down. Opportunities for parallel execution diminish until, at the last time step, only one element remains to be computed. These start-up and shut-down phases limit the amount of speedup we can achieve, and the efficiency with which we can use our processors. For example, if we were to compare two length-n sequences using n processors, the best speedup we could manage would be approximately n/2 (we are thus in effect throwing away half our processors) – and this ignores any other source of overhead. In practice, additional overhead is likely to reduce our achieved efficiency to considerably less than 50%.

We'll have to address both the communication-to-computation ratio, and the start-up and shut-down costs. A good way to address both will be in terms of a transformation to an agenda-parallel approach. We can transform the result parallel solution into an agenda-parallel approach using essentially the same strategy we used in the primes-finder example. We group the elements to be computed into bunches, and we create a collection of worker processes. A single task is to compute all elements in a bunch. A bunch of elements will be a sub-block of the matrix, as we'll describe below. This is the basic strategy, and it's fairly simple; but we need to deal with a number of details before we can make the strategy work effectively.

7.4.1 Granularity

We'll start with the issue of communication. In general, we want to do as much work as possible per communication event. Our strategy will be to enlarge each separate computation—to let the computation of many matrix elements, not just one, be the basic step. We can borrow a well-known technique of computational linear algebra in order to accomplish this. Many computations on matrices have the useful property that the computation can be easily rewritten to replace matrix elements with matrix sub-blocks, where a sub-block is merely a sub-matrix of elements contained within the original matrix. The wavefront computation we described above can easily be rephrased in terms of sub-blocks. We need to know how to handle each sub-block individually, and then how to handle all sub-blocks in the aggregate. Individually, each sub-block is treated in exactly the same way as the original matrix as a whole. In the aggregate, we can compute sub-blocks wavefront-by-wavefront, in exactly the same way we compute individual elements. A given sub-block is computed on the basis of known values for the three sub-blocks immediately above, to the left, and above and to the left. When we say "known values," though, we don't need to know these entire sub-blocks, merely the upper block's lower edge, the leftward block's right edge, and the bottom-right corner of the upper-left block. To eliminate the need for this one datum from the upper-left block, we can define blocks in such a way that that they overlap their neighbors by one row or column. Hence we can compute a new sub-block on the basis of one row (from above) and one column (from the left).

Assuming for the moment that we have square n × n sub-blocks, we have two communication events each involving n+1 pieces of data supporting the n² computations that are required to fill-in a sub-block. We can control granularity by controlling the size of n. The ratio of communication to computation falls as we increase the size of the sub-blocks.

Of course, increasing sub-block size has an obvious disadvantage as well. Consider the extreme case. If the sub-block is the entire matrix, we succeed in eliminating communication costs altogether—and with them, all available parallelism! As we increase the block size, we improve prospects for "local" efficiency (each task has less relative overhead) but we may reduce "global" efficiency by producing too few tasks to keep all processors busy. Nonetheless, we now have a granularity knob that we can adjust to give a reasonable tradeoff between the two extremes of many small tasks with relatively large communication overheads and one large task with no communication overhead.

7.4.2 An agenda-style solution

We could build a result-parallel program based on sub-block rather than single-element computations (see the exercises). But there's an efficiency problem in our computation that is conveniently handled by switching to a master-worker model.

Our computation has start-up and shut-down phases. Having divided our matrix into sub-blocks, we could create one process for each sub-block (that is, we could build a live data structure). But many of these processes would be inactive for much of the time. In general, the parallelism we can achieve is limited by the length of the longest diagonal (i.e., the length of the shorter of the two sequences being compared): at no time can there be more enabled computations than elements in the longest diagonal. But if this length is k , and we have k processors, all k processors will be active only during the middle of the computation. We can get better efficiencies (at the cost of some degree of absolute speedup, of course) by executing with fewer than k processors.

If efficiency is important, then, we will run with far fewer processors than there are sub-blocks in the matrix. We face, once again, a load-balancing problem. We could write a result-parallel program under the assumption that the underlying system will balance enabled processes correctly among available processors. We might begin with a random assignment of processes to processors, and simply move processes around at runtime from heavily- to lightly-burdened processors. But this is difficult to accomplish on parallel processors that lack shared memory—for example on hypercubes, Transputer arrays or local area networks.

In such distributed-memory environments, moving a process requires copying the entire process image from one address space to another. This can be done—but at the expense of some complex operating system support, and the obvious runtime costs of moving process images around.

A more conservative approach is to abstract, and thereby make the switch to an agenda-parallel, master-worker scheme. A task will be the computation of a single sub-block (with a qualification to be discussed below). The naturally load-balancing properties of this software structure work in favor of an efficient implementation.

Massive parallelism: Some of the assumptions behind these arguments will almost certainly be falsified on future massively parallel asynchronous machines. These machines should provide communication support that's fast enough to relieve us from many of our current concerns about fine-grained programs. In such a setting, program development could have stopped several paragraphs ago, with the pure result solution. Result parallelism seems like an excellent way to express matrix computations for massively parallel computers.

Given a sufficiently large parallel machine, throwing away processors in the interests of strong absolute performance might be an excellent strategy. If D (the length of the longest diagonal) represents the maximum achievable degree of parallelism, you may insist on getting D-way parallelism whatever efficiencies you achieve—despite the fact (in other words) that many processors are idle during start-up and shut-down. Even if you have processors to burn, though, you won't necessarily want to waste them needlessly. You may be unwilling to use more than D processors.

To program such a machine, you might build a length-D vector of processes. Each process in the vector computes every element in its row. It leaves a stream of tuples behind, representing the first element in its row, the second element and so on. The second process in the vector can begin as soon as the first process's stream is one element long, and so on. The resulting program is more complex than the result-parallel version given above, but it's simple and elegant nonetheless. (See the exercises.)

Another possible approach is to apply existing automatic transformation techniques to our pure result program, producing in effect the same sort of D-process program we've just discussed. The transformation techniques developed by Chen in the context of her Crystal compiler [Che86] might be applicable here. (These techniques are currently targeted at functional-language programs, and functional languages are unacceptable for our purposes; they may support a neat solution to the problem discussed here, but outside the bounds of this chapter they fall flat. Like parallel do-loop languages, they are too inflexible to be attractive tools; we want to solve many sorts of problems, not just one. But—Chen's techniques may well be applicable outside of the constricting functional language framework.)

7.4.3 What should the sub-blocks look like?

So, we've designed a master-worker program where a task is the computation of a single matrix sub-block. We must now consider what a sub-block should look like.

Notice that, if we are comparing two sequences of different lengths, potential efficiency improves. The shorter-sized sequence determines the maximum degree of parallelism. But whereas, for a square result matrix, full parallelism is achieved during a single time step only (namely the time-step during which we compute the elements along the longest counter-diagonal), a rectangular matrix sustains full parallelism over many time steps. The difference between the lengths of the longer and the shorter sequence is the number of additional time steps during which maximum parallelism is sustained.

Suppose our two sequences are length m (the shorter one) and n, and suppose we are executing the program with m workers. The number of time steps for parallel execution, t_par , is given by

2m + (n - (m - 1)),

so for m, n >> 1

t_par ≈ m + n.

The sequential time, t_seq , is given by m*n, and thus speedup, S, is

t_seq /t_par= mn/m+n.

Note that if n >> m,

S ≈ m.

In other words, if n >> m, we get essentially perfect speedup (m workers yielding a speedup of m), and perfect efficiency. This result is intuitively simple and reasonable. Picture a short (in height), wide (in width) matrix—a matrix for which n >> m. It has many longest counter-diagonals (where a square matrix has only one). Each counter-diagonal is m long; whenever we are computing a counter-diagonal, we can use all m workers at once, and thus get m-fold speedup. If we define the aspect ratio, α, of a matrix to be the ratio of its width to its height, then

α = n/m

and

S = (α/α+ 1) m.

So, if α happens to be 10 (one sequence is ten times longer than the other), efficiency can be as high as 90%.

Combining this observation with the concept of blocking yields a mechanism for controlling start-up and shut-down costs. We've been assuming that sub-blocks are square (although we do have to allow for odd shaped blocks along the right edge and the bottom). But they don't have to be. We have an additional, important degree of freedom in designing this program: the aspect ratio of a sub-block (as opposed to that of the whole matrix). We can use non-square sub-blocks to produce a blocked matrix just high enough to make use of all available workers, but long enough to reduce start-up and shut-down inefficiencies to an acceptable level. In other words, we can set the aspect ratio of a matrix (in its blocked form) by adjusting the aspect ratio of its sub-blocks.

First, we choose an ideal height for our sub-blocks. If our blocked matrix is exactly W high (where W is the number of worker processes), then each worker can compute a single row of the blocked matrix. To achieve a W-high blocked matrix, we set the height of each sub-block to m (the length of the shorter sequence, hence the height of the original matrix) divided by W. We now need to determine a good width for each sub-block. Let's say that we aim for an efficiency of 90%. For a maximum-achievable efficiency of 90%, α (as we saw above) should be ≈ 10. It follows that each row of the blocked matrix should have 10W elements. Hence, the width of of a sub-block should be the length of the longer sequence divided by 10W.

Why not shoot for 95% efficiency?

Pop quiz: What α corresponds to 95% efficiency? 99% efficiency?

Keep in mind that the number of communication events (transfers of a sub-block's bottom edge from one worker to the worker directly below) grows linearly with α. Too much communication means bad performance.

7.4.4 Task scheduling

A task—the computation of a sub-block—is enabled once the sub-blocks to its left and above it have been computed. (Sub-blocks along the top and the leftmost rim depend on one neighbor only, of course; the upper-left sub-block depends on no others. ) Clearly, we can't merely dump task-descriptors for every sub-block into a bag at the start of the computation, and turn the workers loose. We must ensure that workers grab a task-descriptor only when the corresponding task is enabled.

We could begin with a single enabled task (the computation of the upper-left block), and arrange for workers to generate other tasks dynamically as they become enabled. (See the exercises.) Another solution is (in some ways) simpler. After a worker computes a sub-block, it proceeds to compute the next sub-block to the right. Thus, the first worker starts cruising across the top band of the matrix, computing sub-blocks. As soon as the upper-left sub-block is complete, the second worker can start cruising across the second band. When this second worker is done with its own left-most sub-block, the third worker starts cruising across the third band, and so on.

This scheme has several advantages. We've simplified scheduling, and reduced task-assignment overhead: once a worker has been given an initial task assignment, the assignment holds good for an entire row's worth of blocks. We have also reduced inter-process communication overhead. When a block is complete, its right and bottom edges will, in general, be required by other computations. Under our band-cruising scheme, though, there's no need to drop a newly-computed right-edge into tuple space. No other worker will ever need to pick it up; the worker that generated it will use it.

We present the code for this version in figures 7.3 and 7.4. The partitioning of the matrix into sub-blocks of nearly equal height is a bit obscure. Since the number of workers may not evenly divide the lengths of the sequences, we must provide for slightly non-uniform blocks. We could treat the left-over as a lump forming one final row and column of blocks smaller than the rest. But this would leave the worker assigned to the last row with less work than all the rest, leading to an unnecessary efficiency loss. Instead, we increment the height (or width—see the worker's code) by 1, and use this larger value until all the excess has been accounted for, at which point we decrement the height to its "correct" value.

The worker code uses the similarity() routine from the previous chapter. We can now account for its extra arguments. It's designed to accept a pointer to a max value (for recording the maximum entry computed), working buffers (cols), a description of the sequence segments that label the left and top sides of a sub-block, and a vector of entries forming the top edge of the sub-block. During the computation, this vector is overwritten with a new set of values defining the bottom edge of the sub-block. The cols buffer is used in analogous fashion: initially cols[0] points to a buffer holding the left edge, finally it points to the buffer holding the right edge of the sub-block. Thus, when similarity() completes, we know the maximum similarity value within the sub-block, and the values that define the right and bottom edges.

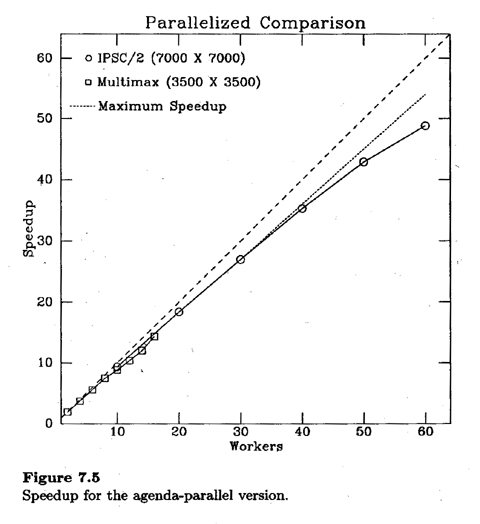

The program's performance is summarized by the speedup graph in figure 7.5 (as usual, the abscissa reports the number of workers—the number of processes is one greater). We ran tests on the Encore Multimax and the Intel iPSC2, again running a larger problem on the larger Intel machine. On both machines, α (the aspect ratios) was 10. Again, speedup is relative to a sequential C program running on one processor of the machine in question.

On the Multimax, our test problem compared a sequence of length 3500 against itself. (Big problems are what we want to parallelize; here, a big problem is a big sequence [not a big database]. The largest sequence in just one subset of the standard compendium of genetic sequence data is, at present, over 70,000 bases long; there's nothing implausible about a length 3500 sequence.) The Multimax sequential time for this problem was 258 seconds... or 247 seconds. Here we have an example of the memory effects discussed in chapter 4. These large sequences are "cache busters" taken in their entirety, but will fit in cache when they're broken up into pieces. The higher sequential time (258 seconds) is the figure actually reported by the sequential code. The lower time is calculated by extrapolation from the sequential database-search times—recall that, for the problems discussed in the previous chapter, the sequences in the database and the target sequences are all "small" compared with our current test case. Which time should we use in assessing performance? The former is of more interest to the program's user. But the latter corrects for memory effects, and thus makes it somewhat easier to assess our analysis and verify our understanding of this code's performance. Setting α to 10 should yield a maximum-achievable speedup that is 90% of ideal. And indeed, using the lower (memory-effect corrected) time, our measured efficiencies are within 5% of this model through 10 workers on the Multimax and 40 workers on the iPSC/2. (Using the larger time, efficiencies exceed the "maximum achievable" figure on both machines for small numbers of workers.)

The 16-worker time for the Multimax was 18 seconds. Using a 7000-base self-comparison problem, sequential times for the iPSC/2 were 776 and 758 seconds; 60 workers finished the computation in 16 seconds. On both machines, there is a tail-off in efficiency as the number of workers increases. We can account for this tail-off if we think about the size of each block as a function of the number of workers. The number of blocks is α times the square of the number of workers; thus, the size of each block, and accordingly the amount of work per communication event, falls as the square of the number of workers. It is the inexorable drag arising from this steadily-sinking task granularity that shows up in the observed performance degradation.

7.5 Back to the original database problem

We've developed a reasonable approach to parallel wavefront computations. Suppose, though, that we need to perform a series of wavefront computations—not merely a single one in isolation. Why should a series of computations be necessary? For one, consider our original DNA-database problem. Our goal was to compare a target to every sequence in the database, not merely to one other sequence.

One way to speedup a series of events is (of course) to speedup each event in the series. In this sense, parallelizing each individual comparison, using the techniques developed in this chapter, is one way to speedup the database search as a whole. But once we've decided to perform a whole series of comparisons, a further significant optimization to our wavefront technique suggests itself.

The idea is simply to overlap the shut-down phase for one comparison with the start-up phase for the next. Processors that would normally lie idle while the last few sub-blocks of one comparison were being computed can be set to work on the first few sub-blocks of the next comparison. As a result, we pay once for start-up and once for shut-down over the entire database search.

The conversion to overlapped execution is simple in principle, but we must take care to avoid several problems. First, there need only be two sequences (or actually, parts of two sequences) in tuple space at any point; again, we must assume that our database is too large to fit into core, and that we must play it out gradually. While some workers finish up one comparison, the rest soldier on to begin the next. Carrying out this clutter-control strategy requires some additional synchronization between the master and the workers. Our code uses an index tuple to assign each worker an identification tag for the duration of a particular sequence comparison. (The id is, in effect, the index of the row for which the worker will be responsible. ) The worker who picks up the last id (num_workers-1) informs the master that all workers have signed on to the most recent comparison. Only then does the master set up the next comparison.

The second problem is a bit more subtle. If we are not careful to distinguish top edge tuples, the possibility exists that tuples from two different comparisons might be mixed up. A speedy first worker might romp through the first row of one comparison strewing top edge tuples for the second row in its wake, and then zip on to the first row of the next comparison. If the worker handling the second row of the first comparison is relatively slow, it may see a mixture of top edge tuples, some from the first comparison and some from the second. Thus, block coordinates alone are insufficient labels for top edge data; we need to include a task_id as well. This change is easily handled by adding a task_id field to the top edge tuple.

The code, reflecting these comments, is given in figures 7.6 and 7.7.

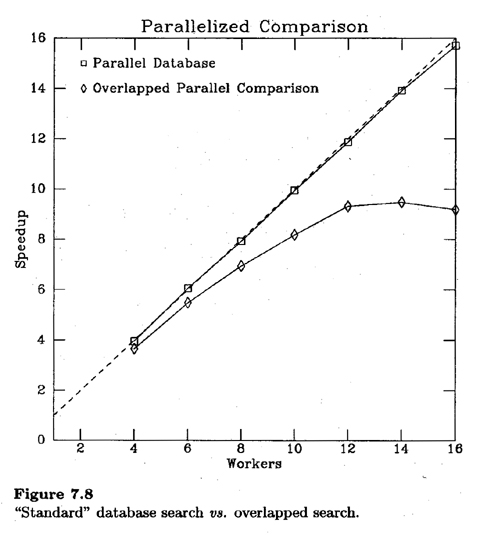

We noted in the previous section that our blocking approach has a drawback: task granularity falls as the square of the number of workers. This means the code is likely to be efficient only when dealing with relatively large sequences or running with relatively few workers. In our test database, short sequences predominate. Figure 7.8 compares the speedup using the overlapping code to speedup for the final version of the code in the previous chapter, using the test case described there for the Multimax. As the number of workers increases, speedup is acceptable at first, then levels off, and then actually begins (at 16 workers) to decrease. Nonetheless, for a modest number of workers, overlapping does work. α is 1 here, and yet we manage a speedup of over 9 with 12 workers, versus an expected speedup of 6 using the wavefront code "as is" to process a series of comparisons.

7.6 And the denouement: hybrid search

We've made a number of changes to the original code that have resulted in a much more efficient program. We can also see that this code doesn't suffer from many of the problems that the agenda version did. In particular because it parallelizes each comparison we needn't worry about the issues stemming from the multiple comparison approach of the agenda version: we only need one sequence (or a few sequences) from the database at any given time, we don't need to order the sequences to improve load balancing, and long comparisons will not lead to idle workers. So why bother with the other version? In a word, efficiency. Doing comparisons in chunks must involve more overhead than doing them "whole". Ideally we would like to pay that overhead only when necessary, and use the parallel comparisons of the previous chapter (as opposed to parallelized comparisons) by default. Fortunately, it's possible to write a code that combines the best parts of both.

Actually, we've already done it (almost). The hybrid approach follows from a simple observation: if we could fix the block size by making it relatively large, comparisons involving long sequences would still be blocked (and therefore be "internally" parallelized), while short sequences would fit into one block, with many such comparisons taking place in parallel. In other words, we would use the more efficient approach where it worked best: with moderate size comparisons. We would use the more expensive approach where it was needed: for very long sequences.

To do this we need to modify our previous code to manage tasks explicitly—we can no longer guarantee that all workers are meshing together in the same way that they did for the overlapped code, in which sub-blocking was adjusted to ensure every worker had a slice of every comparison. We can still exploit row affinity, so this boils down to handling the first sub-block of each row as task that when created is "incomplete" and that becomes enabled when the the top-edge is computed.

We must now choose an appropriate block size. If sub-blocks are too large, the largest piece of work may still dominate the rest of the computation. If they are too small, we defeat our attempt to use more efficient whole-sequence (non-sub-blocked) comparisons whenever possible.

To simplify things, let's assume that the target sequence always defines the top row of the comparison matrix and that there is at least one really large sequence that needs blocking (a worst case assumption). The largest possible chunk of work, then, is the computation of a row of sub-blocks. The size of this chunk in toto is T * B, where T (the width) is the length of the target, and B (the height) is the height of one block. To this point, we've neglected start-up and shut-down costs; if we add these in, the last piece of work this size cannot be completed any earlier than the time needed to compute about 2TB entries, establishing a lower limit for the parallel runtime. If the total number of workers is W, we would like maximum speedup to be W, or in other words

S = W = DT/2TB = D/2B,

where D is the size of the database. This in turn implies that

B = D/ 2W.

Note that this constraint is easily expressed algebraically and straightforward to compute. Thus it's no problem to design a code that dynamically adapts to information about the number of processors (which implies the desired speedup) and the size of the database. Once again, we have a knob that can be used to adjust the granularity of tasks to suit the resources at hand.

The code, assuming a constant block size, is presented in figures 7.9 and 7.10.

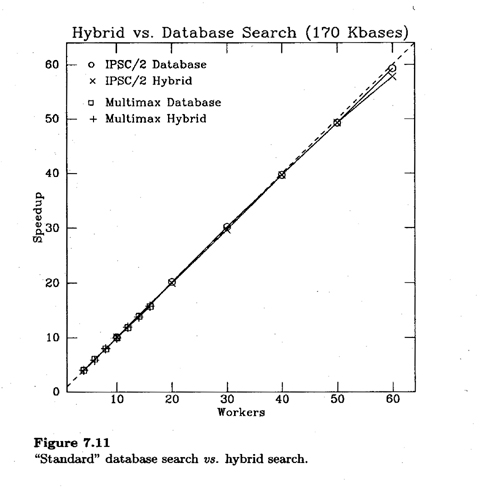

Once again, we present performance data for the Multimax and iPSC/2. First, to establish that this code is competitive with last chapter's simpler database code, figure 7.11 compares speedups for this program and the the chapter 6 program using the same test database as before. As expected, there's virtually no difference. To illustrate the problem we're addressing, figure 7.12 presents speedups for these same two programs on the iPSC/2 when our test database is augmented by a single 19,000-base sequence. The 19 Kbase whopper imposes a maximum speedup of about 9 on the database code; the speedup data clearly demonstrate this upper bound. The hybrid version, on the other hand, takes the big sequence in stride. It delivers close to the same speedup as it did in the previous case.

7.7 Conclusions

Many other computations can be approached using the techniques described in the chapter. Any problem that can be described in terms of a recurrence relation belongs in this category. Matrix arithmetic falls into this category; we discuss matrix multiplication in the exercises.

The result itself needn't be a matrix; we might, for example, build a parallel program in the shape of a tree that develops dynamically as the program runs. Tree-based algorithms like traveling salesman and alpha-beta search are candidates for this kind of result parallelism; so are parsers of various kinds.

7.8 Exercises

1. Matrix multiplication is a problem that can be treated in roughly the same way as string comparison (although it's much simpler, with no inter-element dependencies). Multiplying a p × q matrix A by a q × r matrix B yields a p × r matrix C , where the value of C[i,j] is the inner product of the ith row of A and the jth column of B. To get the inner product of two vectors, multiply them pairwise and add the products: that is, add the product of the two first elements plus the product of the two second elements and so on.

Write a result-parallel matrix multiplication routine (it assumes that the two matrices to be multiplied are stored one element per tuple). Clearly, all elements of the result can be computed simultaneously. In principle, the multiplications that are summed to yield each inner product could also be done simultaneously—but don't bother; they can be done sequentially. Now, transform your result-parallel code into an efficient master-worker program that uses sub-blocking. (The input matrices will now be assumed to be stored one block per tuple, and the result will be generated in this form as well.)

2. (a) Write the vector-based result parallel string-comparison program described in the "massive parallelism" discussion above. Each process can turn into a data tuple, before it does so creating a new process to compute the next element in its row; or, each row can be computed by a single process that creates a stream of data tuples.

(b) We've assumed that a "live vector" is created as a first step. The vector's first element starts computing immediately; the other elements are blocked, but unblock incrementally as the computation proceeds. Write a (slightly) different version in which you begin with a single process (which computes the first row of the result); the first process creates the second process as soon it's finished computing one element; the second process creates the third, and so on.

3. Write a result-parallel string comparison program with adjustable granularity. (Each process will compute an entire sub-block of the result.)

4. Write a different version of the agenda-parallel string comparison program. Workers don't cruise along rows, computing each sub-block; instead, they grab any enabled task from tuple space. An enabled task is a sub-block whose input elements (the values along its left and upper edge) have already been computed. Compare the code-complexity and (if possible) the performance of the two versions. How would this strategy affect the overlapped and hybrid searches?
